Tianquan P200 Compact Thermal Camera
infiray P200 thermal camera
InfiRay P200 Compact Thermal Camera is an ultra-modern thermography tool featuring rotatory lens to provide accurate and intelligent temperature measurement. It is named after the star in the northern circumpolar constellation of Ursa Major - "Megrez". The unique gravity-sensing UI, rotating menu, and 56° large FOV can satisfy the requirements in special spaces. The 256×192 resolution, 3.5-inch touch screen, and 16G internal memory produce smooth intelligent experiences. Benefiting from the self-developed user-friendly InfiRay temperature measurement analysis software, P200 makes infrared data analysis easy and efficient. It can be connected to the cloud through Wi-Fi to achieve real-time data sharing among multiple devices. It also supports real-time image analysis through USB and settable alarm threshold and multi-area flexible alarm on one screen. P200 has become the right-hand assistant for operation and maintenance engineers, HVAC engineers, and equipment inspectors.

01.Rotate: The Vision is Up to You

Free rotating of 90°, for more possibilities

There is no need for user to adapt to the position and angle of the target. With P200 0-90° rotary lens, temperature measurement and inspection have never been so easy and convenient.The gravity-sensing UI can be switched between horizontal and vertical measurement at will. The rotating menu and 56° large FOV are also optimized for wider and taller targets.
infiray AT20 thermal camera

02.Accurate Enough: More Precise and Powerful

One Step Faster to Become the Leader

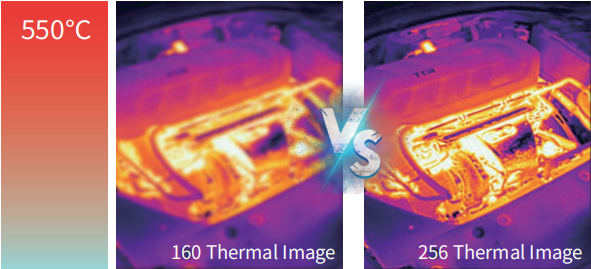

P200 is embedded with InfiRay self-developed high-sensitivity VOx infrared detector with 256×192 resolution and ≤ 0.04°C. It can provide extraordinary high-definition thermal images with amazing details, higher temperature accuracy, and better troubleshooting. The frame rate of 25Hz makes imaging more smooth. Everything seems more real.
infiray AT20 thermal camera

03.Smart enough: Built-in InfiRay Cloud Ecosystem

Benefit Beyond the Screen

■ Accessing InfiRay Cloud Services through Wi-Fi, Multiple Devices Sharing Data
Collect data here and analyze on the cloud, "once and for all"

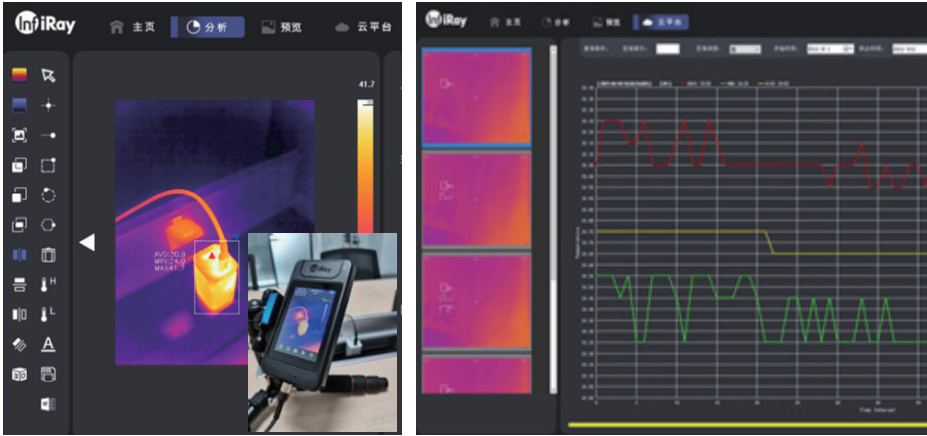

■ Professional Software and Temperature Analysis
InfiRay self-developed user-friendly temperature measurement analysis software displays the temperature of points, lines, and areas directly.
■ Portable or Fixed? Meet more monitoring and analysis requirement
Support USB plug-and-play analysis, flexible alarm threshold setting, and multi-area real-time alarm on one screen
infiray AT20 thermal camera
infiray AT20 thermal camera
infiray AT20 thermal camera
