To see hot secrets and night secrets, plug and play.

This is a good helper for you, whether you are a building heating and ventilation technician,

a mobile phone repair master, a power engineer, an outdoor enthusiast, or a mother who cares about the baby's health.

InfiRay® is known for its high-definition images and precise temperature measurement. You can package them all away for new technology and new life.

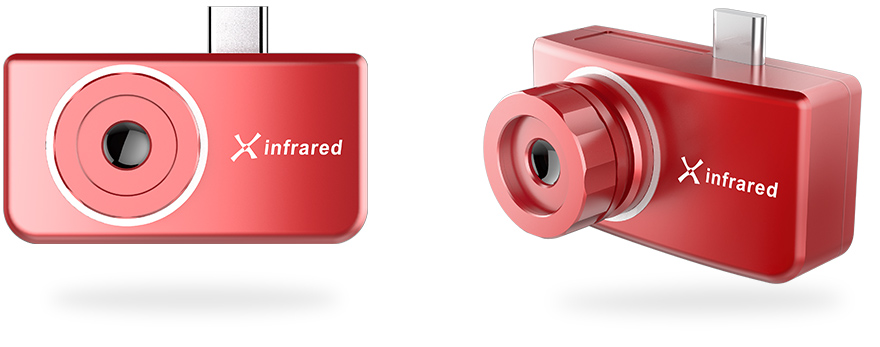

T2S
  • 电力检测

    Electric power inspection

  • 电路板检测

    Circuit board inspection

  • 发动机检测

    Engine inspection

  • 建筑暖通

    HVAC in buildings

  • 电力检测

    Electric power inspection

  • 电路板检测

    Circuit board inspection

  • 发动机检测

    Engine inspection

  • 建筑暖通

    HVAC in buildings

Model T2S
Resolution 240x180
Pixel Pitch 17μm
Spectral Band 8~14μm
Objective Lens 6.8mm
Focusing Mode Manual
Frame Rate 25Hz
NETD ≤60mK@25℃,f#1.0
MRTD ≤500mK@25℃,f#1.0
Operating Temperature -10℃~+50℃
Measuring Range -20℃~+120℃
Measurement Accuracy ±3℃ or±5% of the difference between the environment temperature and the target temperature
Temperature Correction Manual/Auto
Power Consumption <0.5W
Weight (with lens) <40g
Size (with lens) 49.5mm×26mm×27.5mm (6.8mm Lens)
Phone Compatibility Android 6.0 and above
Image Enhancement Digital detail enhancement
Image Correction Manual
Color Palette White hot/Black hot/Multiple pseudo color options
SDK Develop Support
Temperature Statistics Support Max./Min./Center Temp. Display, with up to Three Points Statistic
Photo&Video Support
Online Software Update Support

The data above are for reference only. Specifications in the marketed products shall prevail.
